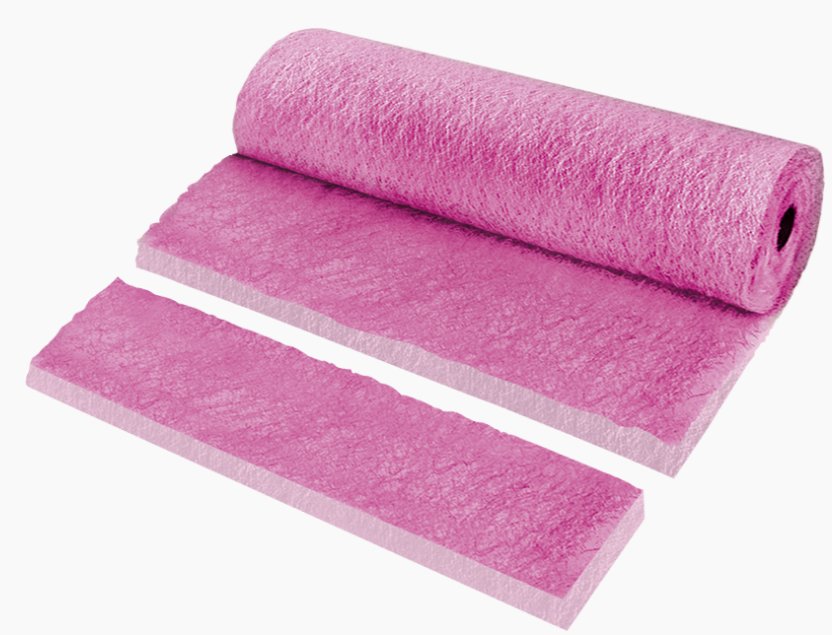

Hydro Stop Filter 1

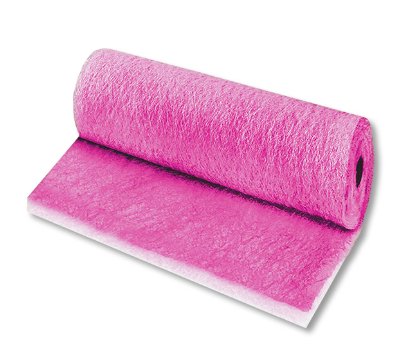

Hydro Stop Filter 2
Hydro Stop Filter small 0
Hydro Stop Filter small 1

Hydro Stop Filter

For use in separation of ink mist used on dry particles of water based paint.

  • Glass fibre media made by VOLZ, in our inhouse production
  • Elastic fibre structure
  • Combines the characteristics of Paint-Stop and Dust-Stop and was specially developed for the filtration of water based paint, the media has an active adhesive adde
  • Dirty air side is coloured magenta for easy identification
  • ISO 16890
  • F1 DIN 53438
  • REACH RoHS
  • Painting Technology
  • Use in separation of ink mist used on dry particles of water based paint.
 Hydro Stop
Paint mist arrestance approx. *98%
Filter class acc. to ISO 16890ISO Coarse 55%
* The degree of separation depends on type of paint, overspray or environmental conditions such as the temperature or pressure in the cabin.
Technical data: Hydro Stop
Filter area[m2]1
Material thickness approx.[mm]75
Recommended nominal air flow[m3/h/m2]2.700
Air velocity[m/s]0,75
Initial pressure drop
(measured at air velocity on a flat sheet 610 x 610 mm)		[Pa]7
