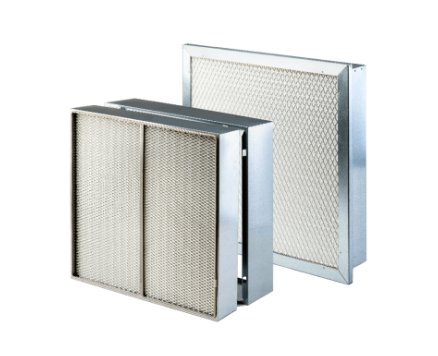

Compact High Temperature Filter
The right choice for ambitious applications in high operating temperatures
High quality glass fibre media
- Reinforced mounting frame with a flat profile which prevents the deflection of the filter at high air flow rates
- High air flow rates with small filter depth (HT-292 with standard frame) and in limited space
- Temperature resistant up to 260°C – 380°C (please refer to TDS for more information)
- Separators made from glass fibre paper
· Industrial high-temperature ovens for coating or painting
· Hot air high-temp ovens
· General dust filters
| Filter class | Width | Height | Depth | Initial pressure drop | Airflow |
| ISO 16890 (EN 779) | mm | mm | mm | Pa | m³/h |
| ISO ePM1 70% (F8) | 592 | 592 | 55 | 105 | 1800 |
| ISO ePM1 70% (F8) | 592 | 592 | 78 | 105 | 1900 |
| ISO ePM1 70% (F8) | 592 | 592 | 150 | 125 | 2600 |
| ISO ePM1 70% (F8) | 592 | 592 | 110 | 125 | 2500 |
| ISO ePM1 70% (F8) | 610 | 610 | 120 | 135 | 3400 |
| ISO ePM2,5 50% (M6) | 592 | 592 | 55 | 60 | 1800 |
| ISO ePM2,5 50% (M6) | 592 | 592 | 78 | 60 | 1900 |
| ISO ePM2,5 50% (M6) | 592 | 592 | 150 | 85 | 2600 |
