Spray Mesh

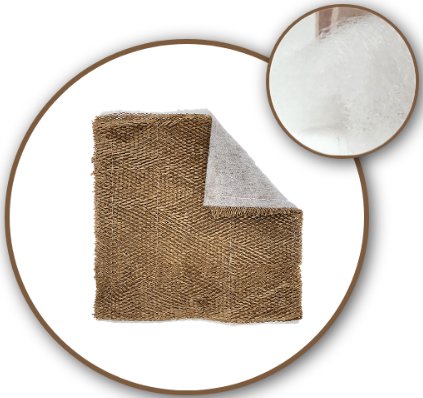

SprayMesh filters are made of recycled kraft paper. Several layers of meshed paper, going from very large to very small meshes are assembled to form a multilayer progressive mesh filter. This configuration allows an in depth paint loading, first layers taking care of the loading capacity, last layers allowing a high efficiency filtration performance.
Combining numerous layers of various mesh dimensions will ensure the best filtration performances adapted to your type of paint.

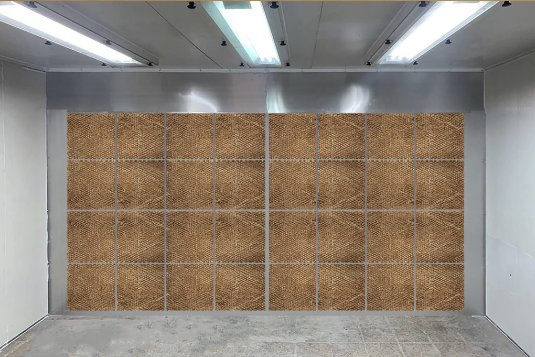

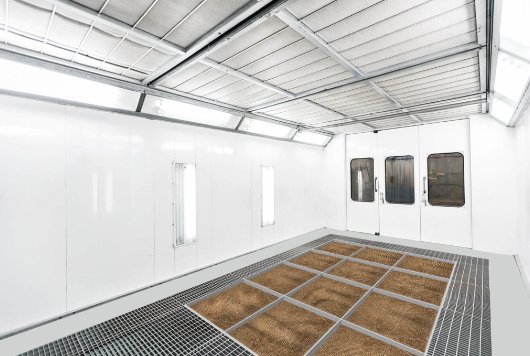

· Automotive Paint Booths: capturing overspray generated during the painting process.
· Industrial Coating and Finishing: trapping paint and coating particles.
· Woodworking and Furniture Manufacturing: controlling overspray and removing particulates generated during staining, varnishing, and painting processes.
Our BASE mesh paper paint arrestors consist of 6 layers of woven paper mesh.
Expanded paper exhaust filters are an economical solution for paint exhaust removal and provide high efficiency as well as good holding capacity.
| DIMENSIONS | THICKNESS | WEIGHT | COLOR |
|---|---|---|---|
| Pad 20’’ x 20’’ (50cm x 50 cm) Roller 45’’ x 30’ (114cm x 76cm) | 15 mm 0,6 inch | 280 g 0,62 lbs | Brown |
| FILTRATION EFFICIENCY | HOLDING CAPACITY | LAYERS | PAPER TYPE |
|---|---|---|---|
| 85% - 99% | 4 to 6 kg 9 to 13 lbs | 6 | Kraft |
