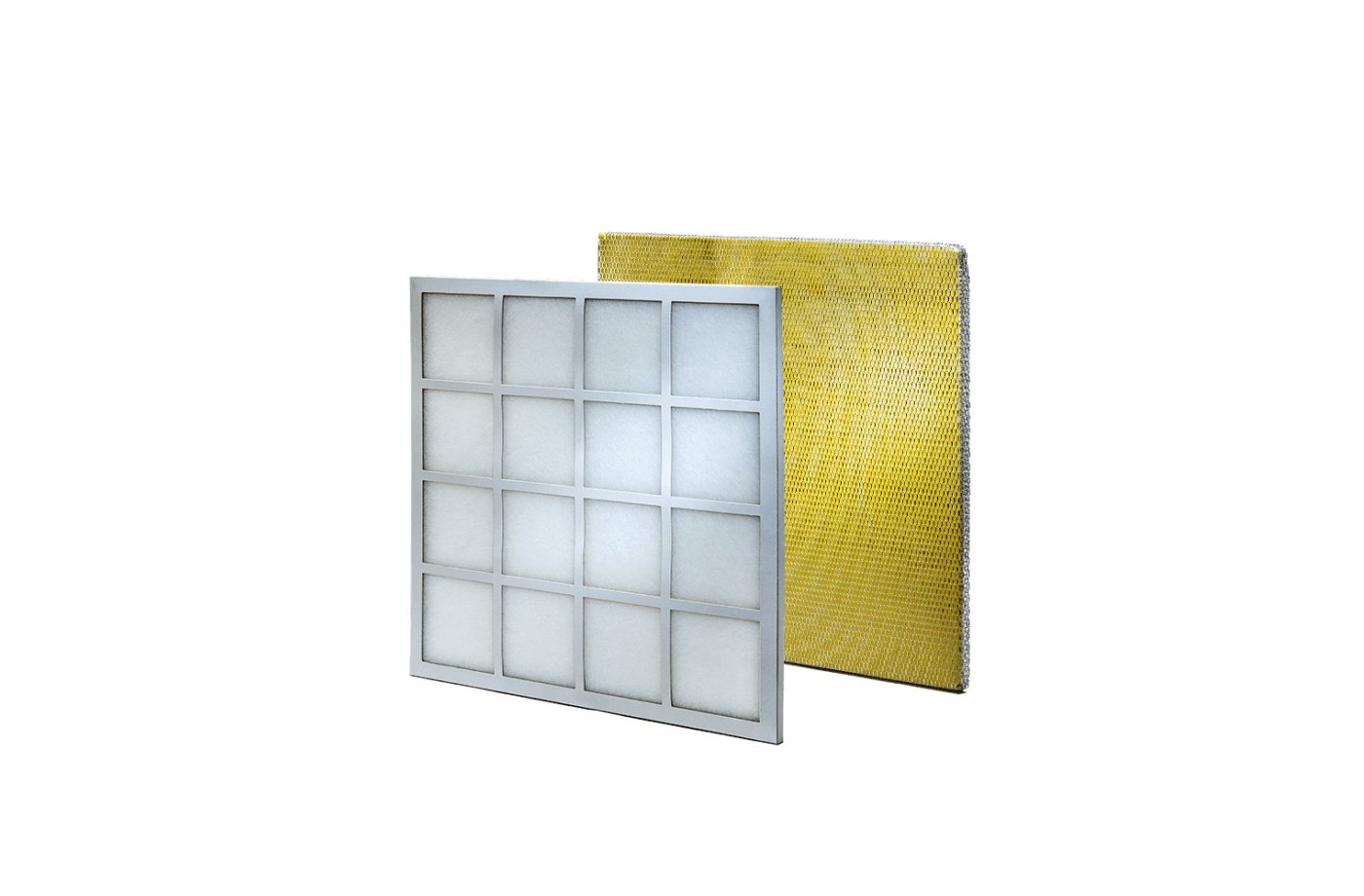

High Temperature Panel Filter
High-quality ceiling filter cassettes in painting and drying systems and units
- Filter pack AL200 und UG300
- High temperature ceiling filter cassettes
- High quality fiberglass media
- Temperature resistance:
- AL200 up to max. 200°C
- UG300 up to max. 300°C
- Filter pack SK100 und ZH120
- High quality ceiling filter cassettes
- Synthetic filter media
- Glass reinforcement scrim on the dirty air side
- Temperature resistance:
- SK100 up to max. 100°C
- ZH120 up to max. 120°C
· Industrial high-temperature ovens for coating or painting
· Hot air high-temp ovens
· General dust filters
| Type | Filter class ISO 16890 (EN 779) | Width mm | Height mm | Depth mm | Initial pressure drop Pa | Airflow m³/h |
|---|---|---|---|---|---|---|
| Filter pack - AL200 | ISO ePM10 50% (M5) | 480 | 480 | 14 | 105 | 500 |
| Filter pack - SK100 | ISO ePM10 50% (M5) | 480 | 480 | 14 | 150 | 1000 |
| Filter pack - UG300 | ISO Coarse 60% (G4) | 480 | 480 | 14 | 55 | 1000 |
| Filter pack - ZH120 | ISO ePM10 50% (M5) | 480 | 480 | 20 | 140 | 1000 |
